- Description
- Specification
Features

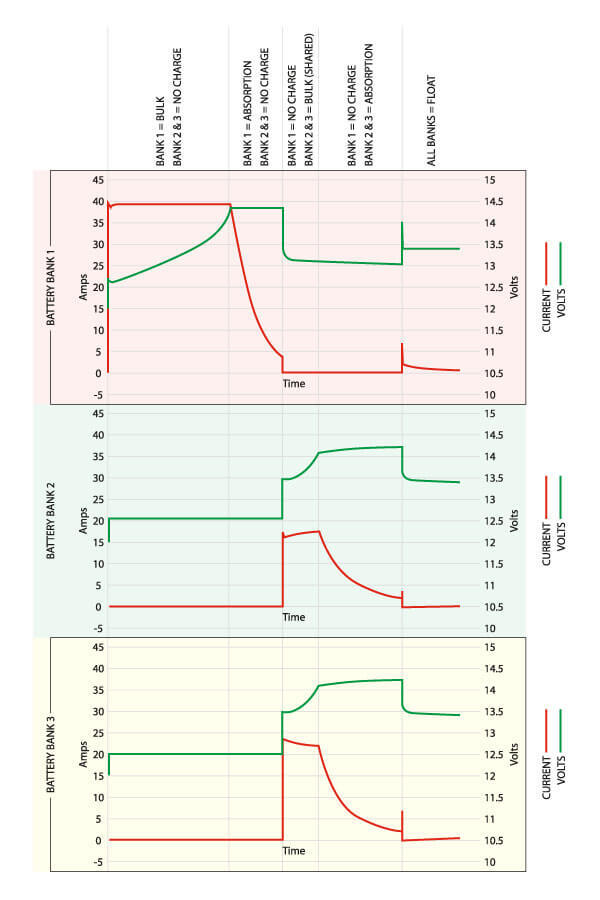

- Multistage Charging: Fully automatic multistage battery charger with the ability to charge 3 separate battery banks.

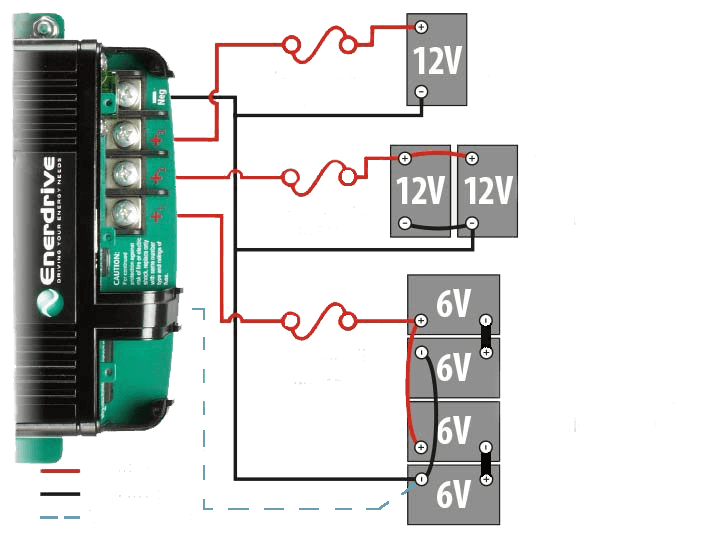

- Separate Battery Banks: Isolated charging design where battery bank one is separate from battery bank two and three.
- Programmable: Battery bank 1 can be programmed with a different charge algorithm over banks 2 and 3.
- Current Control: User adjustable current output (e.g. Dial the 60amp unit back to run off a 1kVA generator).
- Smart Charging: The ePOWER 60A battery charger will regulate its output based on the loads connected to your battery banks.
- Wide AC Input Range: Operates on both 110V / 60Hz and 240V / 50Hz.

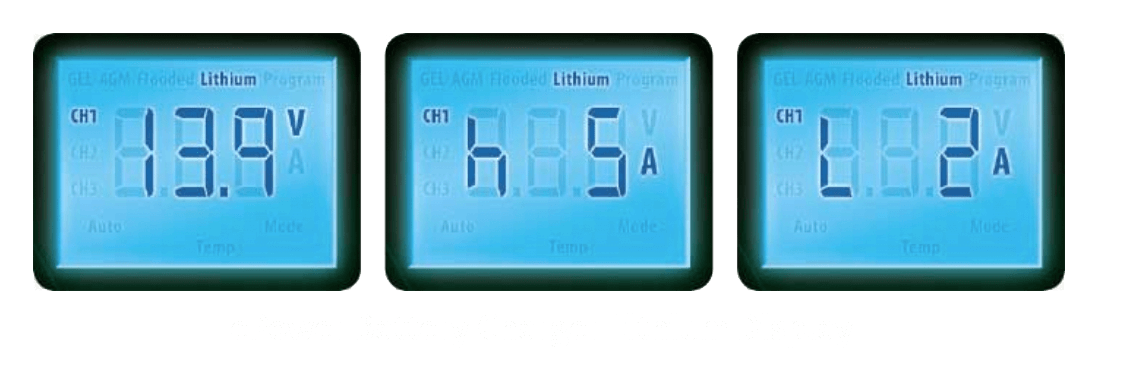

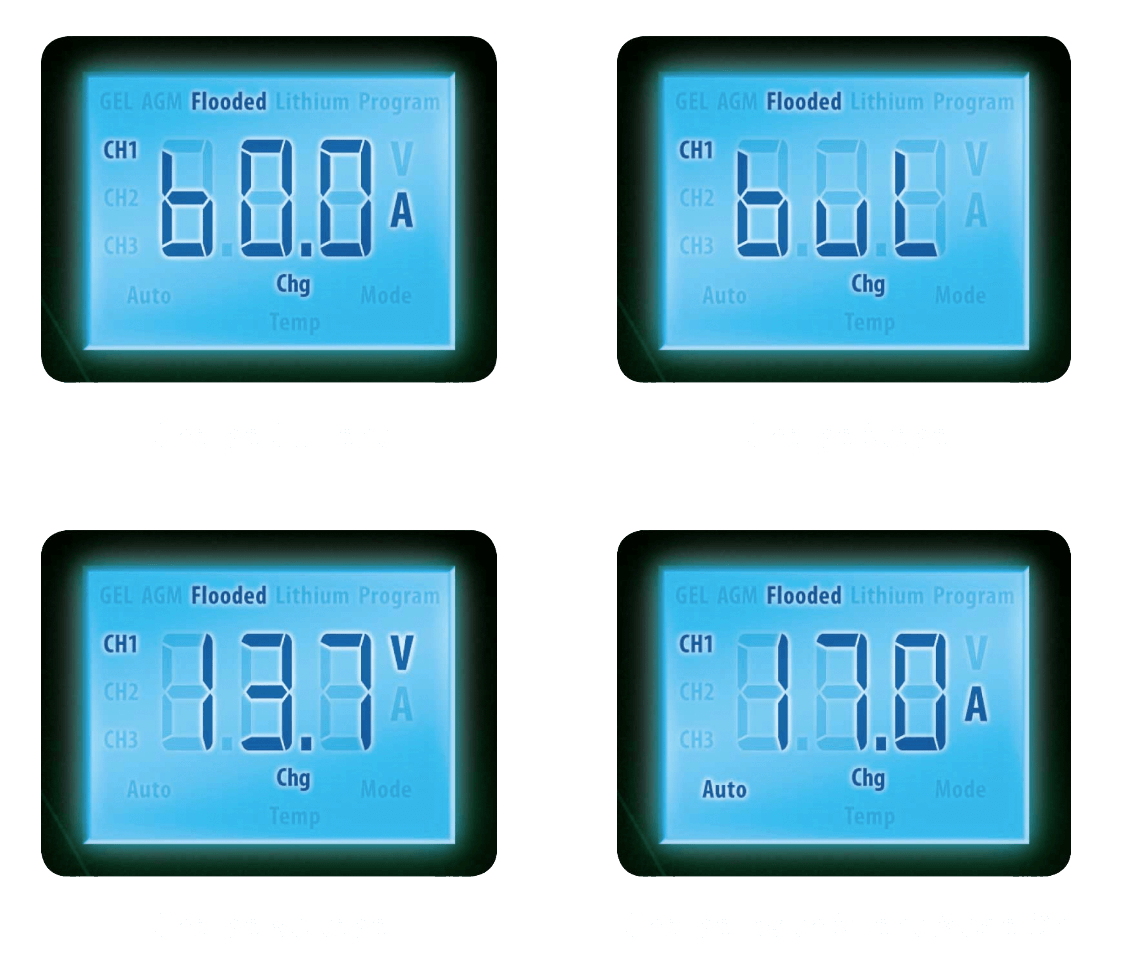

- LED Display: Easy to use “set and select” menu along with scrolling charger status.
- Silent Mode: Disables the cooling fan for total silent operation at night or whenever required. Activation reduces charge output by half and locks out fan for 12 hours.
- Temperature Sensor: Battery temperature sensor included with 3 meter cable.
- 5 Year Warranty from an Australian company renowned for customer support.
| Model | EN31260 |
| CHARGER OUTPUT | |
| Output Current (Maximum) | 60A |
| OUTPUT VOLTAGE RANGE | |
| Charge | 14.2 – 15.5 V |
| Float | 13.4 – 13.8 V |
| – Equalize | 16.0 V |
| DC Output Bank | Three (1 fully independent, 2 common with diode isolation) |
| Selectable Battery Type | Gel, AGM, Flooded, Lithium, Program |
| Standby Current | < 2 mA |
| CHARGER INPUT | |
| AC Input Voltage (Nominal) | 90 to 265 VAC |
| AC Input Operating Range | 207-265 Vac (5.9 A Max)90-125 Vac (11.3 A Max) |
| AC Input Frequency Range | 47 – 63 Hz |
| Power Consumption | 1050W (Full Load) |
| Power Factor Correction | Yes |
| Charger Efficiency | > 82% |
| PROTECTION AND FEATURES | |
| Reverse Polarity | Yes, (with user replaceable fuse/s) |
| Over Charge | Yes, unit shutdown |
| Over Temperature | Yes, unit de-rated and shutdown |
| Output Short Circuit | Yes, (with user replaceable fuse/s) |
| Cooling | Forced air ventilation (thermo controlled fan) |
| Temperature Setting | Hot, Normal, Cold (no sensor connected) |
| Battery Temp Sensor Port | RJ12 (standard battery temp. sensor supplied) |
| DISPLAY | |
| LCD Display (with back light) | Charging status, Battery Voltage, Output Current & Fault Codes. |
| AC INPUT AND DC OUTPUT CONNECTION | |
| AC Input Connection | IEC with Supplied 1.2M Power Lead |
| DC Output Connection | Heavy Duty Terminal (3 banks) – Pan Heads 6mm Thread |
| DC Output Ground | Single Heavy Duty Common Ground Stud |
| ENVIRONMENTAL AND OPERATING TEMPERATURE | |
| Storage Range | -40° to 70° C |
| Operating Range | -20° to 60° C |
| Humidity | 5-95%, relative humidity non-condensing |
| Ingress Protection | IP32 (Basic drip proof in vertical orientation) |
| Base Unit Weight and Dimensions | |
| Weight: (kg) | 4 |
| Dimension: (mm) L x W x H | 356 x 206 x 99 |
| Optional Accessories | Remote Digital Display / Enerdrive Part Number EN3REM |
| Regulatory Compliance | Complies with AS/NZS 60335.2.29 Including Australian deviations. |
PACKAGE INCLUDES
- 1x 60A Smart battery charger
WARRANTY
5 Years Warranty
GTIN
9342616000267
