TPMS Tyre Pressure Monitoring System External Sensor LCD 4WD Wireless PSI 4x4
FREE SHIPPING ZONE
We provide free delivery for most metropolitan areas in Australia, but there may be additional delivery costs associated to some areas.
TPMS Tyre Pressure Monitoring System External Sensor LCD 4WD Wireless PSI 4x4
Regular price
Sale price$217.95 (/)
Description
Spare Sensors:

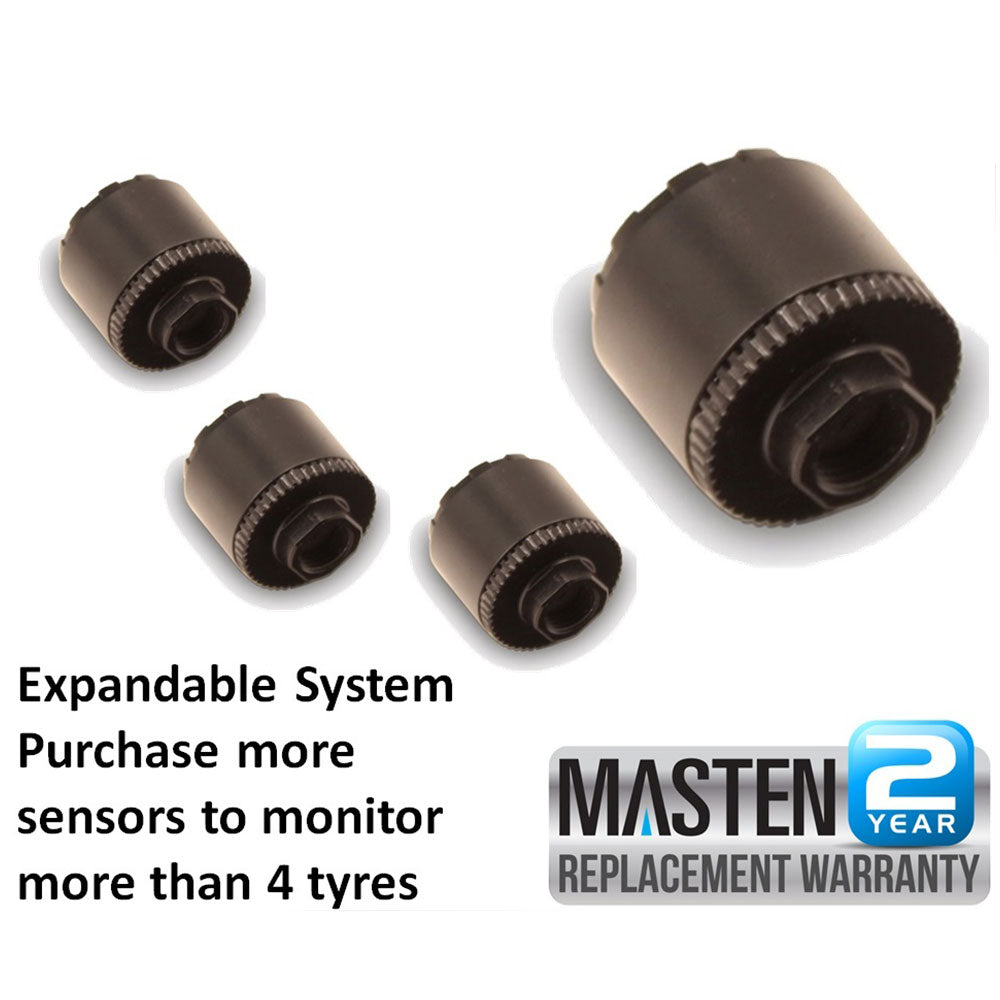

If you're after spare sensors the part numbers are TP-09S (internal valve) and TP-10S (external cap)
Overview:

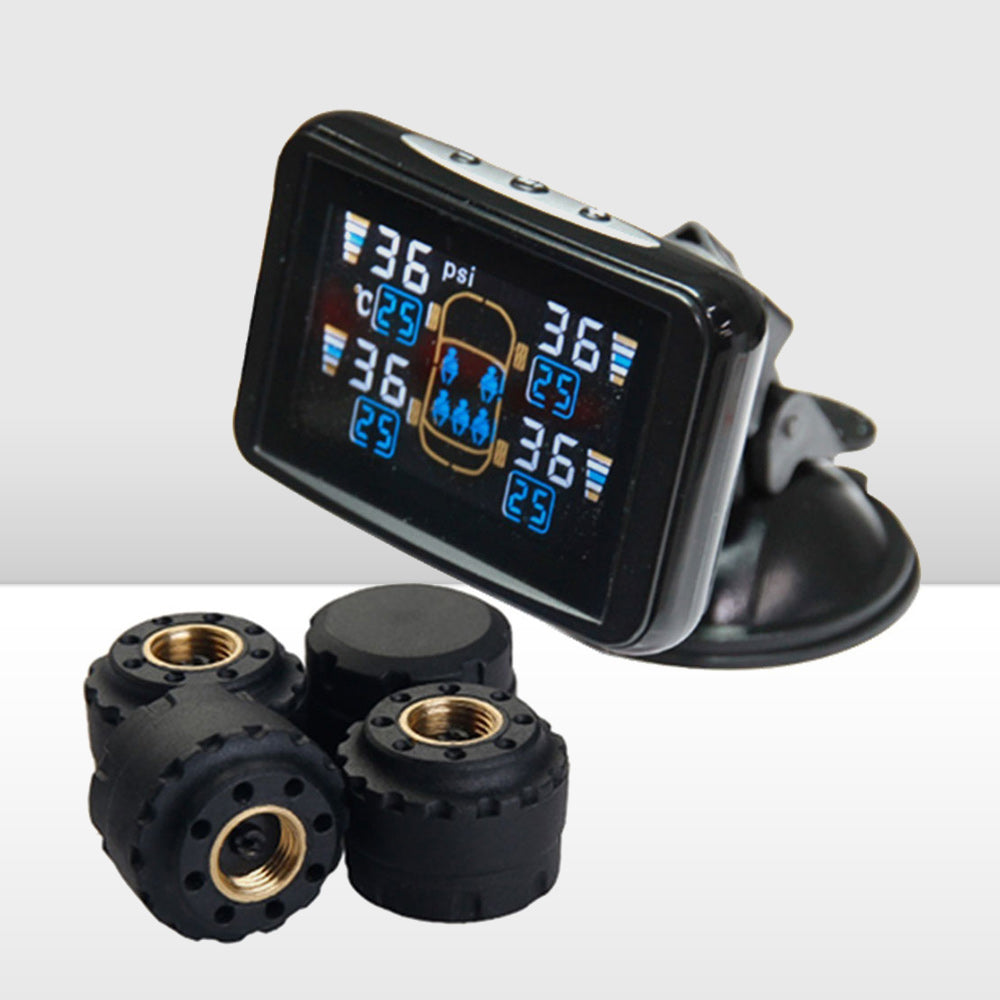

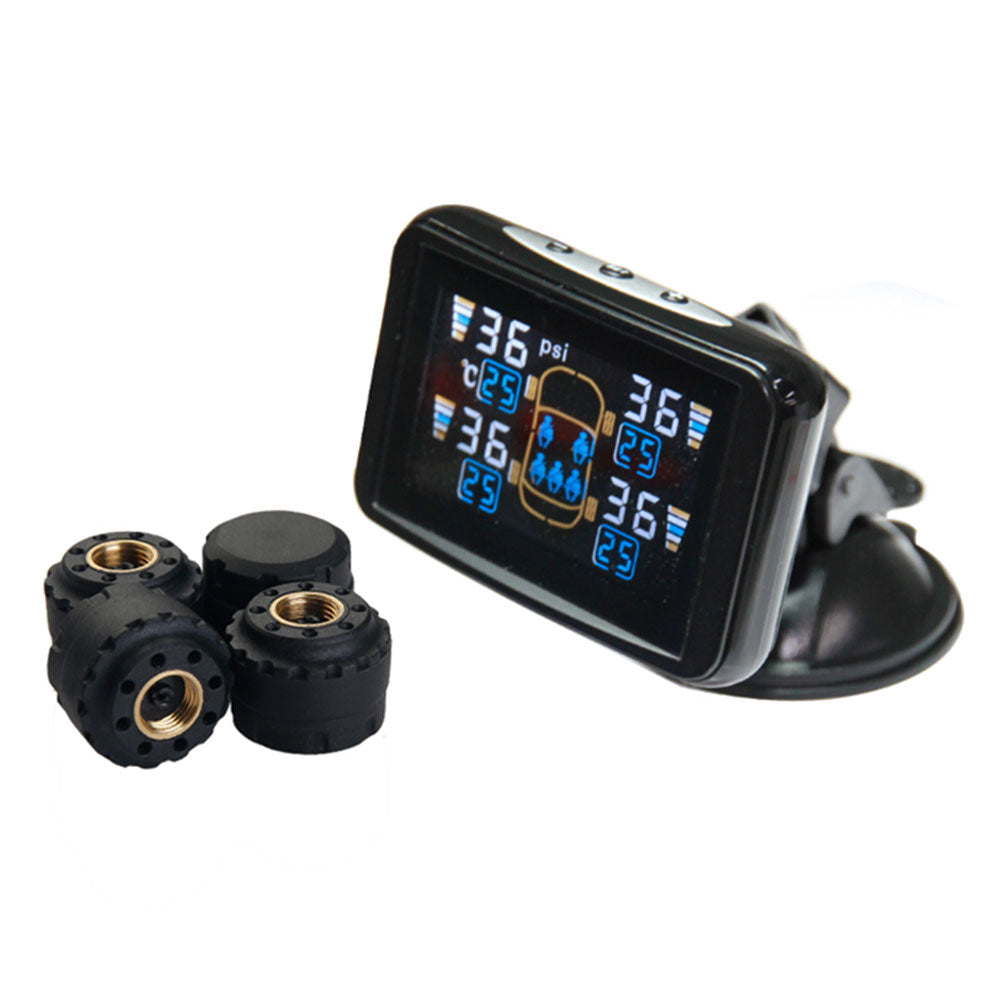

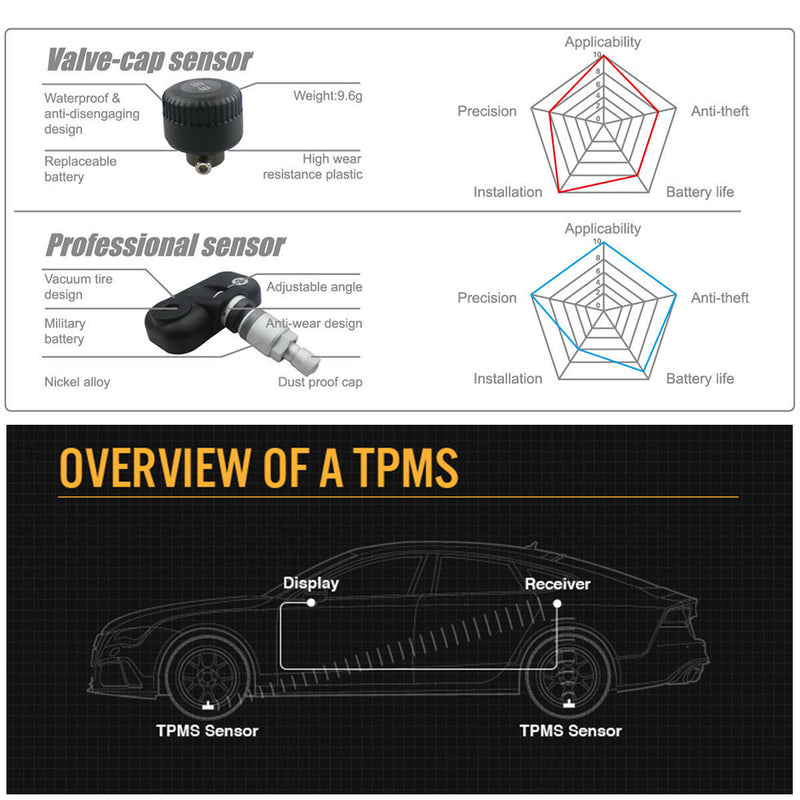

The Masten TP-13 (external sensors)/TP-16 (internal sensors) TPMS Tyre Pressure Monitor System is specifically designed for for those wanting to monitor their tyre pressure in a non-obscure way due to the conpact design of this monitor. .
The TPMS module simply works silently and alerts you if there is a problem with your tyres. The Tyre data can be viewed at all times.
Features
Features
- Monitoring Pressure Range: 3~99PSI (0.2~6.82 BAR) Sensor Pressure Range: 0~116PSI (0~8 BAR)
- Simple DIY installation!
- Masten improved wireless signal
- Attractive design with visual and audible alarm
- 7 Metre Wireless Range
- PSI and BAR Adjustable Units
- Adjustable Front and rear sensors high/low pressure alarm range
- Real-time Tire Pressure and Temperature Display of all 5 Tyres Simultaneously
- TPMS information screen will automatically appear if a tyre problem is detected
- The multi colour interface allows you to easily identify problem tyres in red for fast evaluation
- Premium quality sensors
- User friendly programming functions
- Note:Your order will dispatched within 2-3 business days.
Specifications
| Monitor Specifications | |
| Operational Temperature: | -20 to 80°C |
| Storage Temperature: | -30 to 85°C |
| Transmission Frequency: | 433.92MHz |
| Input Voltage: | DC 12 to 24V |
| Size: | 76(L) x 50(W) x22 (H)mm |
| Weight: | 58g |
| External Cap Specifications | |
| Operational Temperature: | -40 to 80°C |
| Storage Temperature: | -40 to 85°C |
| Pressure Range: | 0 to 8BAR, 0~116PSI |
| Pressure Accuracy: | ±0.1BAR, ±1.5PSI |
| Temperature Accuracy: | ±3°C |
| Transmission Power: | <10dBm |
| Transmission Frequency: | 433.92MHz |
| Battery life: | Approx 3 years(CR1632, -40 to 80°C) |
| Size: | 21mm(diameter) x 17.5mm(height) |
| Weight: | 9g |
| Internal Valve Sensor Specifications-Optional | |
| Operational Temperature: | -40 to 80°C |
| Storage Temperature: | -40 to 85°C |
| Pressure Range: | 0 to 8BAR, 0~116PSI |
| Pressure Accuracy: | ±3°C |
| Transmission Power: | <10dBm |
| Transmission Frequency: | 433.92MHz |
| Battery life: | Up to 5 years |
| Size: | 60(L) x 35(W) x21(H)mm |
| Weight: | 48g |
Package Includes
- 1X Universal Dash Mount TPMS Monitor
- 4X Premium External Cap Sensors
- 1X Installation wiring
Warranty
2 Year Warranty
GTIN
Note: Please do not use 'P.O. Box' as your mailing address
